Advantages

Ultra Portable

PELI STORM CASE iM3100 – external size 1011 x 419 x 169 mm

2″ iREX Gauge Hanger is only 91.3 cm long (35.9 inch), while 1.378″ iREX Gauge Hanger is even shorter (72.2 cm/28.4 inch). So they could be placed in a medium-size PeliCase, together with Electro-Hydraulic Setting tool, Adapter and Redress kits. This toolbox is ready to be transported anywhere in the world.



Length for small size Gauge Hangers, mm
Csg Size Csg Wt (lb/ft) 1.378" iREX 1.5" Competitor 1.5" Competitor
2-7/8 6.4-11.5 722 870 1072
3-1/2 7.7-17 722 922 1082
Length for medium size Gauge Hangers, mm
Csg Size Csg Wt (lb/ft) 2" iREX 2" Competitor 2" Competitor
4-1/2 10.5-15.1 913 1297 1040
5-1/2 15.5-43.1 913 1342 1116
7 26-38 913 1467 1239

Large Flow Area

Large flow area is achieved by slim OD and thin links between body and slips



Flow Area for small size Gauge Hangers
Csg Size Csg Wt (lb/ft) 1.378" iREX 1.5" Competitor 1.5" Competitor
2-7/8 6.4-11.5 51% 48% 40%
3-1/2 7.7-17 65% 61% 54%
4-1/2 12.6-26.1 76% 72%
Flow Area for medium size Gauge Hangers
Csg Size Csg Wt (lb/ft) 2" iREX 2.2" Competitor 2" Competitor 1.8" Competitor
4-1/2 10.5-15.1 60% 59% 60% 62%
5 15-24.1 65% 64% 65%
5-1/2 15.5-43.1 71% 68% 70% 70%
6-5/8 20-32 79% 76% 77%
7 26-38 80% 78% 78% 78%

Strong Grip

Active bi-directional anchor gives reliable gripping force between slips and casing walls.

Due to its high load capacity and anchor design the Gauge Hanger can be used as an anchor for downhole tools like inflatable packers, perforation guns, sampling tools and can be set in both cased and open holes.

Less turbulence

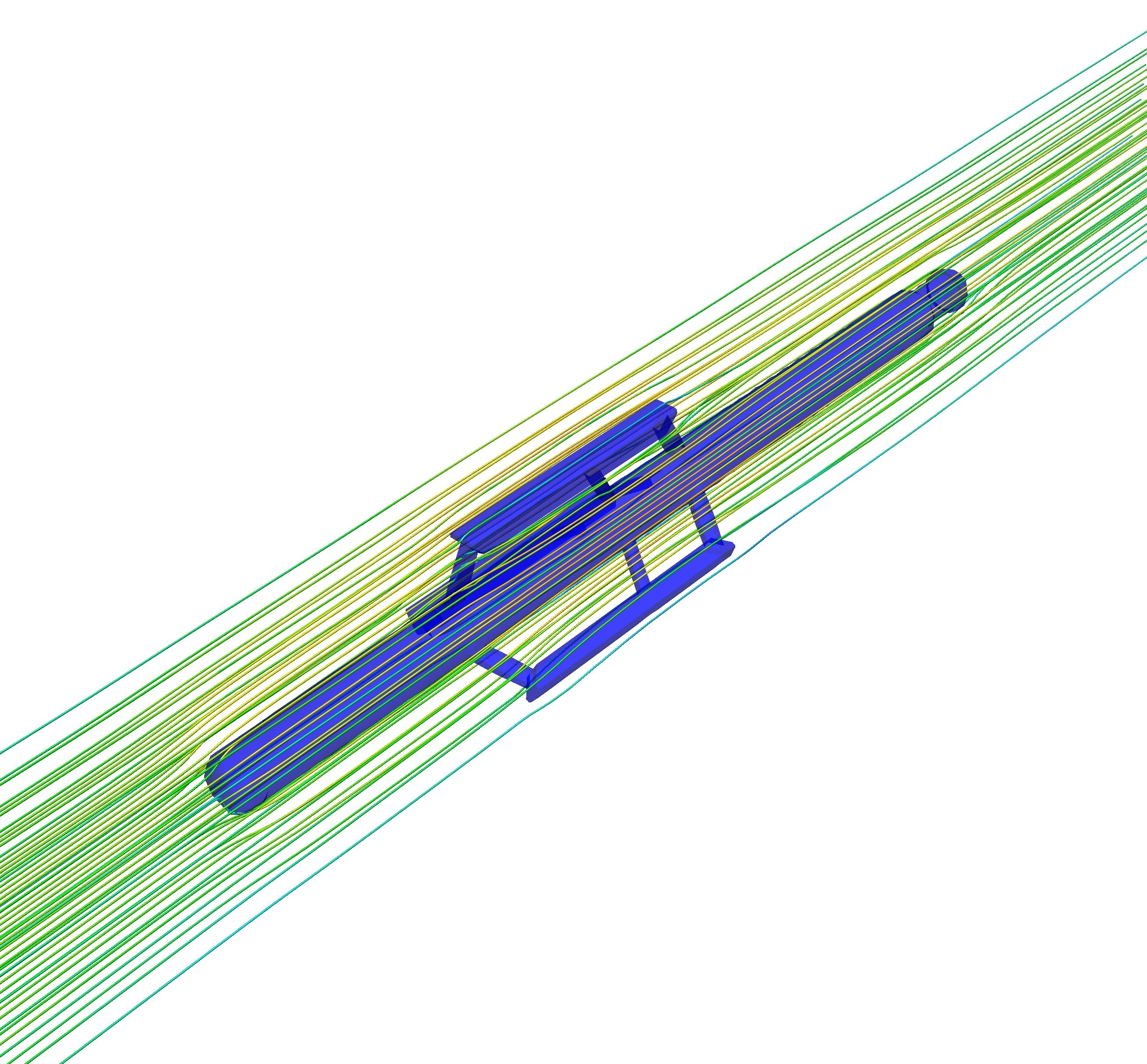

iREX Gauge Hanger

Typical competitor Gauge Hanger

Flow simulations indicate that flow structure is almost unchanged with iREX Gauge Hanger compared with a typical Gauge Hanger provided by a competitor. Less turbulence means more accurate well data measurements, less deposition of organic and mineral sediments (scale, waxes, paraffins, asphaltenes) and lower risk of pipe blockage or corrosion.

Low Prices

Smart design. Fewer parts

Cost-optimised manufacturing operations

Significant cost savings

Why we can offer so competitive prices?

We are focused on cost reductions from the first step. It is a result a serious effort from our team to simplify design, reduce number of parts and optimise production without compromising requirements to operation, reliability and safety.

Our lean organisation and effective routines help to keep internal costs low.

Quantity Discount for 2″ Gauge Hangers
Quantity Discount
