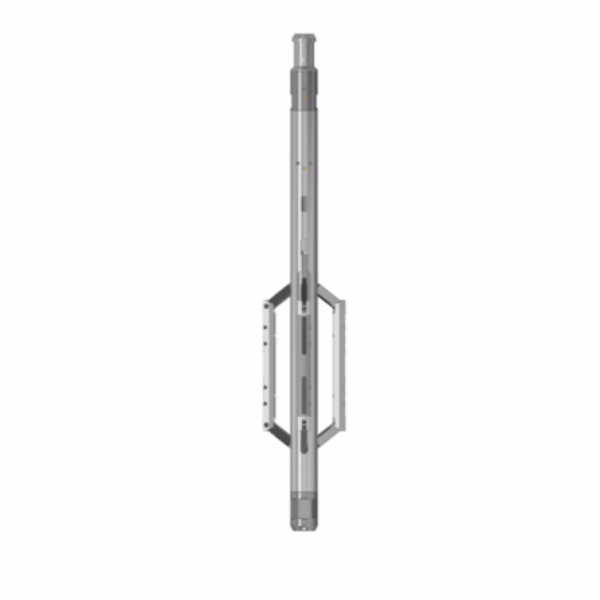

2″ iREX Gauge Hanger

2″ iREX Gauge Hanger

2″ iREX Gauge Hanger

The Gauge Hanger provides a reliable suspension of memory gauges in oil and gas wells.

Main features and technical specifications could be found below at Description and Additional Information.

Please download Infosheet and Datasheet (coming soon).

SKU: 117-2000 Category: Tag:
0

The Gauge Hanger can be set in any section of the well and no internal nipple profile required for setting. Installation can be done by any suitable standard setting tool on Slickline, Wireline or E-line.

Small tool OD combined with rigid and short tool design allow running through well areas with small ID and achieve high flow rate when the Gauge Hanger is installed.

No conversion kit required to set the Gauge Hanger in all casing sizes and weights from 4-½ to 7 inch.

Tubular body and pocket type anchor design provide excellent protection of the slips when RIH and POH. Active bidirectional anchor gives reliable gripping force between slips and casing walls.

Due to its high load capacity and anchor design the Gauge Hanger can be used as an anchor for down-hole tools like inflatable packers, perforation guns, sampling tools and can be set in both cased and open holes.

Standard SB pulling tool is used to retrieve the Gauge Hanger from the well.

Weight 10 kg
Dimensions 91.3 x 5.08 x 5.08 cm
Size/OD

2.00 inch / 5.08 cm

Overall Length

35.95 inch / 91.3 cm

Material

AISI 17-4 PH (QPQ treatment), INCONEL

Setting Range

from 4-1/2 to 7 inch (all casing weights)

Setting Force

7,000 lbs / 3,175 kg

Setting Stroke

3 inch / 7.62 cm

Bottom Connection

1-1/16-10 UNS

Nominal Fishing Neck Size

1.75 inch / 4.45 cm
